modular conveyor belt Perforated flat top 27.2mm pitch

Price: 78.0~85.0 USD
Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW-900HS
Production Capacity: 100square meters/month
Delivery Date: 12-16days
Material: POM ,PP
Brand Name: OEM
Weight: POM=7.11kg/square metre
Pitch: 27.2mm
Thickness: 8.6mm
Means of Transport: Ocean
Packing: carton
Structure: Chain Conveyor
Material Feature: Heat Resistant
Backflex Radius(min): 30mm
Width: 50±2mm / 101±2mm/ 152±2mm
Working load: 21600N
Temperature range: 4ºC ~ 80ºC

1. Perforated Flat Top Round Holes surface
2. Temperature : +4 to +80ºC
3. Straight running modular conveyor belt

Perforated Flat Top Round Holes Modular Conveyor Belt ( RW-900HS)

Wedth have 3 styles as bellow pictures.
1) . 50±2mm
2) . 101±2mm
3) . 152±2mm

We would like to OEM for you .
Any more infomation pls email me .

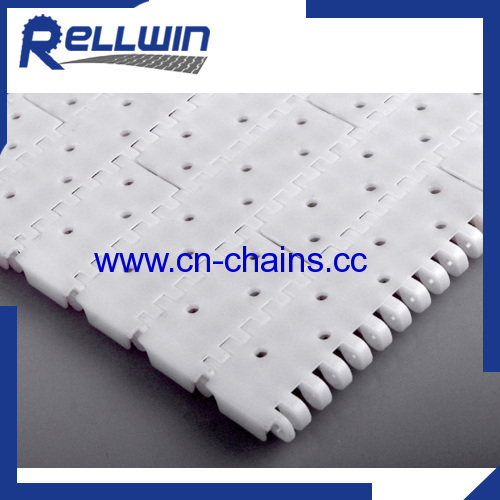

Perforated Flat Top Round Holes Modular Conveyor Belt

Perforated Flat Top Round Holes Modular Conveyor Belt





Item No.MaterialTemperatre rangeWeightBackflex Radius(min.)Working load(max.)
drywetkg/mmmNlbf
RW-PFT900POM+4 ~ +80+4 ~ +657.150.0216001480
PP+4 ~ +104+4 ~ +1044.5410200700



Trade Terms:

1. Payment By T/T or Western Union or Paypal.

   100% payment if the total amount is less than USD 30.000.

   30% deposit and 70% balance before shipment if the total amount is more than USD 30.000.

2. Lead time: 5~15 working days, subject to the order quantity.

3. Delivery ways: DHL , UPS door to door service, by sea, by air, etc.

4. Free sample: 2pc



Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can enhance transverse strength and it is easy for maintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).
Our service:

1. Reply your enquiry in 24 working hours

2. Experienced staffs answer all your questions in fluent English/

3. Customized design is available, OEM&ODM are welcomed

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to our distributor.
