heavy duty flexing chain

Price: 27.0~33.0 USD
Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW882TAB-K1200
Production Capacity: 1000meters/month
Delivery Date: 12-16days
Material: Plastic
Brand Name: OEM
Plate width: 304.8mm / 12.0inch
Backflex Radius(min): 40mm / 1.57inch
Color: white / grey / OEM
Means of Transport: Ocean
Packing: carton
Structure: Chain Conveyor
Material Feature: Heat Resistant
Plastic: POM
Weight: 3.41kg/m
Sideflex Radius(min): 610mm/24inch
Pitch: 38.1mm / 1.5inch

1. Pitch: 38.1mm / 1.5inch
2. Width :304.8mm / 12.0inch
3. Weight : 3.41kg/m

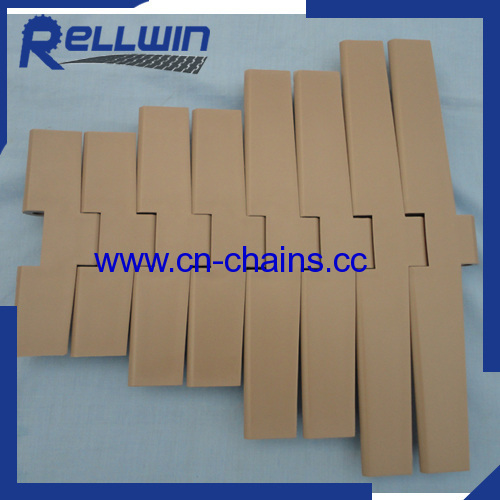

Heavy duty side flexing conveyor chains(RW882-K1200)






Chains typePlate widthWorking load(max.)Backflex Radius(min.)Sideflex radius(min.)Weight
mminchN/M(21°)lb/ft(21°)mminchmminchkg/m
RW882TAB-K600152.463830860



40

1.57609.624.002.1
RW882TAB-K750190.57.52.47
RW882TAB-K1000254102.87
RW882TAB-K1200304.8123.41



Plastic tabletop chains are made of engineering plastic and are connected using stainless steel pins. The plastic tabletop chains constitute a light-weight yet strong and silent alternative to steel chains.
These chains are used mainly in the food and packaging industry for conveying many kinds of containers. For example:PET bottle,PET petaloid bottle,Aluminum and steel can, Cartons, Trays,Packaged products (cartons,shrink packs),Glass, Plastic containers.
 Accuracy of molding process guarantees optimum flatness
High wear resistance and low friction
High working load



Our services :

1. Warranty time: 1 year.  The conveyor belt / chains / sprockets which supplied
by our company could be exchanged when it have quality problems,such as it
was broken in installing , the pin run out from chains or the chains parted .
But if the user use it in a wrong way, we can not provide any goods for free .

2. Payment: T/T , L/C , Western Union or Paypal

3. Lead time: 5~15 working days, subject to the order quantity.

4. Shipment: by sea, by air,door to door service for samples transportation.

5. OEM service : we have our own R.D team . If you want to purchase the belt
which we have not or you have your own design , we would like to make mold
for you for free , only have the condition of requiring continuous orders ,and
first order must be more than 60 square meters .
