Plastic Grip 1873G3 Snap-on conveyor chains from China manufacturer

Plastic Grip 1873G3 Snap-on conveyor chains

Price:	52.0~61.0 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RW1873G3-K325

Production Capacity: 500meters/month

Delivery Date: 11-18days

Material: Stainless Steel

Brand Name: OEM

The longest distance: 24M

Pitch: 19.05mm / 0.75inch

Sideflex radius(min.): 356mm/ 14.0inch

Weight: 3.2kg/m

Aseembling method: Designed with plastic fligh...

Means of Transport: Ocean,Air

Packing: 10feet/carton

Structure: Chain Conveyor

Material Feature: Others

Packing:: 10 feet=3.048M/box, 1M=26pc...

Material of base chains: Steel / Stainless Steel

Plate width: 82.6mm / 3.25inch

Backflex Radius(min.): 305mm / 24.0inch

Working loading (max.): 3400N

1. Material of Base chains:stainless steel
2. Plate width: 82.6mm / 3.25inch
3. Pitch: 19.05mm

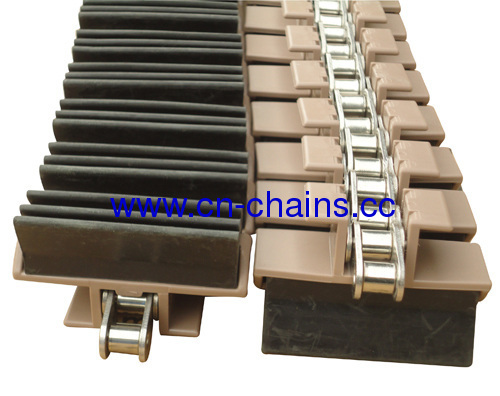

The Grip chain is designed for vertical conveyors where the items are conveyed between two Grip chains. This 1873 Grip chain is supplied with moulded rubber inserts.
The main application for Grip 1873-G3 is vertical conveying of cans or bottles (containers).
The flights for the 1873-G3 chain are the Snap-On type.
The Grip chains have a 0.75 in. pitch side flexing roller base chain.
The recommended temperature area for the Grip chain is -40 to +80°C (-40 to +176°F).
Side flexing integrated gripper conveyor chains(RW1873G4-K325))

Item NO.	Plate Width		Belt Weight		Sideflex Radius(min.)		Backflex Radius(min.)		Working Load(max.)
	mm	inch	Kg/m	lbs/ft	mm	inch	mm	inch	N(21℃)	lbf(21℃)
RW1873G3-K325	82.6	3.25	3.00	2.15	356	14	305	24	3400	765
RW1873G4-K325	82.6	3.25	3.00	2.15
RW1873G4-K450	114.3	4.50	3.40	2.28

Max. Permissible Tensile Force
1. 1873 = 4000N , 900lbf
2. 1873SS = 2000N , 450lbf

Rellwin has a wide variety of Plate Top and Gripper chains.The roller chain based Plate Top is developed for greater loading capacity and permits even higher speeds and longer runs than tabletop chains. The roller chain based Gripper is perfect for product elevating, lowering,rinsing, sterilizing and inverting,by means of soft rubber gripper elements. The base chain is made of stainless steel.
843-,963-,1873-series,with"snap-on"plastic top plates combine the benefits of a plastic conveying surface with those of a precision roller base chain:less slip- stick,high working load and accurate positioning.
Main applications of Gripper chains can be found in glass works.However,they can be used in various other situations, such as crate handing and can manufacturing.The grippers are provided in 3-or 4-finger grippers for smaller products and in D-type Grippers for other applications.

TradeTerms:

1. Payment By T/T or Western Union or Paypal.

100% payment if the total amount is less than USD500.00

2. Lead time: 5~15 working days, subject to the orderquantity.

3. Delivery ways: by sea, by air . DHL , UPS door to door servicefor samples transportation ,

4. Free sample: 2pcs
Our service:

1. Reply your enquiry in 24 working hours

2. Experienced staffs answer all your questions in fluentEnglish/

3. Customized design is available, OEM&ODM arewelcomed

4. Exclusive and unique solution can be provided to our customer byour well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to ourdistributor.
