straight running single hinge conveyor chains from China manufacturer

straight running single hinge conveyor chains

Price:	6.0~10.0 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RW820-K450

Production Capacity: 1000meters/month

Delivery Date: 12-16days

Material: Plastic

Brand Name: OEM

Plate width: 114.3mm/4.5inch

Backflex Radius(min): 50mm / 1.97inch

Pitch: 38.1mm / 1.5inch

Belt Bore Dia: 6.35mm

Max. Permissible Tensile Force: POM=2000N , 450lbf

Means of Transport: Ocean,Air

Packing: carton

Structure: Chain Conveyor

Material Feature: Heat Resistant

Plastic: POM

Weight: 1.03kg /m

Color: grey / OEM

Thickness: 4.0mm

Working load: POM=1230N/m ,276lb/ft

1. Max. Permissible Tensile Force :POM=2000N , 450lbf
2. Working load:POM=1230N/m ,276lb/ft

The main application is for conveying various food products and containers.
820series is a plastic version of the related 812 steel chain. The plastic chains however
have a reinforcing middle rib underneath.
The link thickness is 4.0 mm (0.16 in.) for the 820-series.
The links overlap, so there is no space between the links.

Table Top straight running conveyor chain ( 820-K450)

Chains type	Plate width		Working load(max.)		Backflex Radius(min.)		Weight
Chains type	mm	inch	N/M(21°)	lb/ft(21°)	mm	inch	kg/m
RW820-K250	63.5	2.50	1230	276	50	1.97	0.73
RW820-K325	82.6	3.25					0.83
RW820-K350	88.9	3.5					0.87
RW820-K400	101.6	4					0.95
RW820-K450	114.3	4.5					1.03
RW820-K600	152.4	6					1.25
RW820-K750	190.5	7.5					1.47

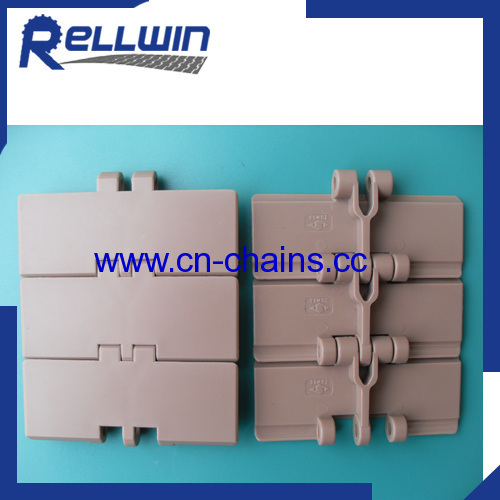

Table Top straight running conveyor chain ( 820-K450)

Plastic tabletop chains are made of engineering plastic and are connected using stainless steel pins.

The plastic tabletop chains constitute a light-weight yet strong and silent alternative to steel chains.
These chains are used mainly in the food and packaging industry for conveying many kinds of containers.

For example:PET bottle,PET petaloid bottle,Aluminum and steel can, Cartons, Trays,Packaged products (cartons,shrink packs),Glass, Plastic containers.
Accuracy of molding process guarantees optimum flatness
High wear resistance and low friction
High working load

Our services

1. Warranty time: 1 year. The conveyor belt / chains / sprockets which supplied by our company could be exchanged when it have quality problems,such as it was broken in installing , the pin run out from chains or the chains parted . But if the user use it in a wrong way, we can not provide any goods for free .

2. Payment: T/T , L/C , Western Union or Paypal .

3. Lead time: 5~15 working days, subject to the order quantity.

4. Shipment: by sea, by air,door to door service for samples transportation.

5. OEM service : we have our own R.D team . If you want to purchase the belt which we have not or you have your own design , we would like to make mold for you for free , only have the condition of requiring continuous orders ,and first order must be more than 60 square meters .
