Flush Grid straight run Conveyor Belt

Price: 66.0~76.0 USD
Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW-SNB M2 34%
Production Capacity: 100square meter/month
Delivery Date: 19-28days
Material: Plastic
Brand Name: OEM
Pitch: 25.4mm
Open Area: 34%
Thickness: 8.8mm / 0.35inch
Means of Transport: Ocean
Packing: carton
Structure: Belt Conveyor
Material Feature: Heat Resistant
Belt Material: POM , PP , PE
Width: 76mm, N*76mm
Weight: POM=6.3kg/m2

1.Width :76mm ,N*76mm
2.Pitch= 25.4mmmm
3.Thickness :8.8mm
4.Weight: POM=6.3kg/m2

Product features and operational benefits:
1. Less friction and product contact for easy cooking, cooling and freezing of products.
2. Radius top surface reducing back line pressure with up to 70%
3. Reduced dirt and oxide build up thanks to self cleaning surface
4. Unique lockpin locking system enabling easy assembly and less downtime
5. Finger plates for trouble free transfer

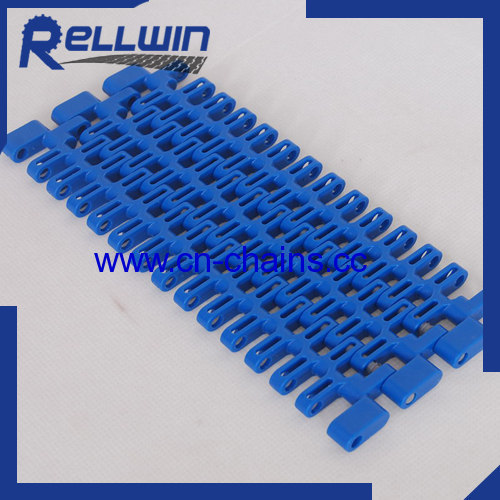

Flush Grid straight run Conveyor Belt (RW-SNB M2 34%)

Flush Grid straight run Conveyor Belt (RW-SNB M2 34%)

Flush Grid straight run Conveyor Belt (RW-SNB M2 34%)








Belt TypeBelt MaterialWorking Load(max.)Belt WeightTemperature Range(Continuous)Backflex Radius(min.)
N/M(Straight)lb/ftKg/m2drywetmm
RW-SNB M2 34%POM2350016106.30+4 ~ +80℃+4 ~ +65℃50
PP1500010284.30+5 ~ +104℃+5 ~ +104℃
PP10006854.40+5 ~ +104℃+5 ~ +104℃

Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can enhance transverse strength and it is easy for maintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).

Trade Terms:

1. Payment By T/T or Western Union or Paypal.

   100% payment if the total amount is less than USD 30.000.

   30% deposit and 70% balance before shipment if the total amount is more than USD 30.000.

2. Lead time: 5~15 working days, subject to the order quantity.

3. Delivery ways: DHL , UPS door to door service, by sea, by air, etc.

4. Free sample: 2pc
Our service:

1. Reply your enquiry in 24 working hours

2. Experienced staffs answer all your questions in fluent English/

3. Customized design is available, OEM&ODM are welcomed

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to our distributor.
