Fluid flo straight running modular conveyor belt from China manufacturer

Fluid flo straight running modular conveyor belt

Price:	85.0~95.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RW-FF620

Production Capacity: 500square meters/month

Delivery Date: 15-19days

Material: Plastic

Brand Name: OEM

Open Area: 35%

Belt material: PP / PE

Weight: PP=7.47kg/m2 , PE=7.91kg/m2

Assembling method: connected with rods

Means of Transport: Ocean,Air

Packing: 5rollers/carton

Structure: Belt Conveyor

Material Feature: Heat Resistant

Pitch: 50.8mm

Thickness: 17.3mm

Pin material: PP / PA

backflex raduis(min.): 75mm

1. Pitch: 50.8mm
2. Open area: 35%
3. Material: PP / PE
4. Weight :PP=7.47kg/m2 , PE=7.91kg/m2

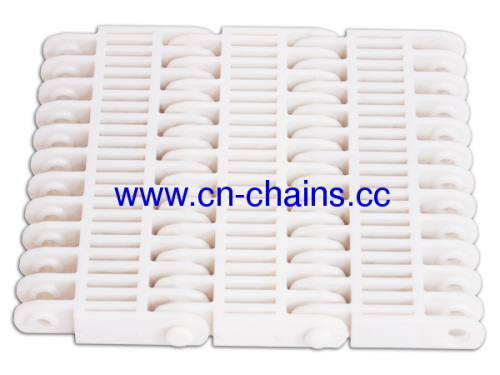

Fluid flo straight running modular conveyor belt (RW-FF620)

Description

1. Pitch: 50.8mm
2. Open area: 35%
3. Material: PP / PE
4. Weight :PP=7.47kg/m2 , PE=7.91kg/m2
5. Load & temperature: 26268N/m , +4° ~ +80°
21014N/m , -40°~ +80°
6. Backflex radius: 75mm

Belt Type	Belt Material	Working Load(max.)		Belt Weight	Temperature Range(Continuous)		Backflex Radius(min.)
Belt Type	Belt Material	N/M(Straight)	N(Curved)	Kg/m2	dry	wet	mm
RW FF620	PP	26268	1800	7.47	+4 ~ +80℃	+4 ~ +65℃	75
RW FF620	PE	21014	1440	7.91	-40 ~ +80℃	-40 ~ +70℃	75

Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can enhance transverse strength and it is easy for maintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).

Trade Terms:

1. Payment By T/T or Western Union or Paypal.

100% payment if the total amount is less than USD 500.00

2. Lead time: 5~15 working days, subject to the order quantity.

3. Delivery ways: by sea, by air . DHL , UPS door to door service for samples transportation ,

4. Free sample: 2pcs
Our service:

1. Reply your enquiry in 24 working hours

2. Experienced staffs answer all your questions in fluent English/

3. Customized design is available, OEM&ODM are welcomed

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to our distributor.
