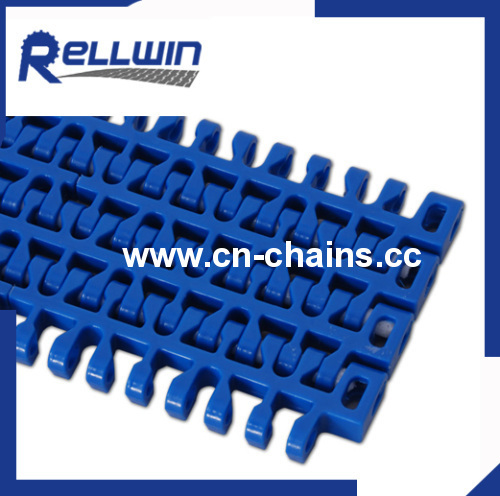

Flush Grid modular plastic belt Flush Grid 1100 open area 28%

Price: 70.0~95.0 USD
Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW-YY-1100
Production Capacity: 1000 suquer meters a mouth
Delivery Date: 12-16day
Material: Plastic
Brand Name: OEM
thickness: 8.7mm
material: POM / PP
Belt weight(PP): 3.95kg/m²
Working loading:: 18980N
port:: Ningbo port
Means of Transport: Ocean,Air
Packing: carton
Structure: Belt Conveyor
Material Feature: Heat Resistant
pitch: 15.2mm
open area: 28%
Assembling Method: connected with rods
Backflex Radius(min): 25mm
Temperture range(dry): 5°C-104°C (PP)

flat modular plastic belt RW-YY-1200A
1.Belt Pitch:15.2mm
2.Open Area:28%
3.Assembling Method:Conected with rods

FG1200A flat modular plastic belt flush Grid 1200

Flush Grid 1100 Conveyor belt exporter


plastic Modular conveyor belt Flush Grid 1100

 Export for Flush Grid 1100 Molded to Width

straight run 15.2mm pitch Plastic conveyor belting

Sprockets for 1100

Sprockets data



Pitch Diameter

Outside diameter
































Payment & Shipping TermsSupply Capacity
Unit Price:USDProduction Capacity:80square meters/month
Payment Term:T/TPacking:Carton
MOQ:20 Square MeterDelivery Date:12-16days
Means of Transport:Ocean

Belt typeBelt MaterialWorking loadBelt weightTemperature range(°C)Backflex radius

Product Description

This kind of modular belt can be used in processing machines, filling machines, such as for beverage filling industry, food processing industry. Also it can be used for bakery applications including general lines and packaging lines.
Belt Pitch: 15.2mm
Open Area: 28%
Assembling Method: Connected with rods
Belt Material: POM/PP
Backflex Radius: 25mm

 Ningbo Rellwin industry Co., Limited is specialized in manufacture

900 Flush Grid plastic modular conveyor belt,900 Raised Rib plastic modular conveyor belt,900 Flat Top plastic modular conveyor belt

1100 Flush Grid plastic modular conveyor belt,1100 Flat Top plastic modular conveyor belt

OPB modular conveyor belt,OPB Flat Top plastic modular conveyor belt,OPB Flush Grid plastic modular conveyor belt,OPB Flight modular conveyor belt

Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can enhance transverse strength and it is easy for maintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).





Our services

1. Warranty time: 1 year.  The conveyor belt / chains / sprockets which supplied by our company could be exchanged when it have quality problems,such as it was broken in installing , the pin run out from chains or the chains parted . But if the user use it in a wrong way, we can not provide any goods for free .

2. Payment: T/T , L/C , Western Union or Paypal .

3. Lead time: 5~15 working days, subject to the order quantity.

4. Shipment: by sea, by air,door to door service for samples transportation.

5. OEM service : we have our own R.D team . If you want to purchase the belt which we have not or you have your own design , we would like to make mold for you for free , only have the condition of requiring continuous orders ,and first order must be more than 60 square meters .
