12-401 CONVEYOR BELT modular belt for machinery automobile

Price: 80.0~120.0 USD
Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW-YY-12-401
Production Capacity: 1000 suquer meter a mouth
Delivery Date: 11-17days
Material: Plastic
Brand Name: OEM
Belt surface: Open belt with a smooth sur...
Pitch: 12.5mm
Cleanability: Excellent.
Application: Cooling belt for small nose...
Belt weight: 4.8kg/m2
Means of Transport: Ocean,Air
Packing: by carton
Structure: Belt Conveyor
Material Feature: Heat Resistant
Materials: POM/PE/POM
Open area: 40%.
Material/colour: PE/nat, PP/white and grey. ...
Accessories: 25 mm. Flight, friction top
Standard widths:: Increments of 20 mm

conveyor belt
Belt surface: Open belt with a smooth surface.
Open area: 40%. Biggest opening 6 x 8 mm.
Strength: Ideal choice for light transportat

 Belt surface: Open belt with a smooth surface.

Open area: 40%. Biggest opening 6 x 8 mm.

Strength: Ideal choice for light transportation.

Material/colour: PE/nat, PP/white and grey. POM/blue

Cleanability: Excellent. FSIS

Accessories: 25 mm. Flight, friction top

Application: Cooling belt for small nose bar.

Standard widths: Increments of 20 mm, e.g. 100, 120 mm etc

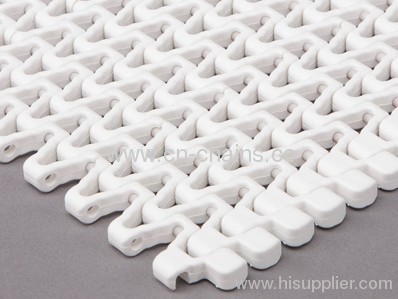

12-401 CONVEYPR BELT Very open with curved surface. Maximum airflow for cooling

12-401 CONVEYPR BELT Very open with curved surface. Maximum airflow for cooling12-401 CONVEYPR BELT Very open with curved surface. Maximum airflow for cooling

      Material

POM

PP

PE

Max.belt pull kg/m of width

1450

800

600

Weight(kg/m2)

4.8

3.5

3.5



No.of teeth

A=outside diameter

B=pitch diameter

C=inside   diameter

Round bore

Square bore





mm

mm

10

50

42

33

20

25/40

19

84

76

67

20/25/30/40

25/40

24

104

96

87

20/25/30/40

25/40

28

120

112

103

20/25/30/40

25/40





Payment & Shipping Terms

Supply Capacity

Unit Price:

20.0~120.0

USD

Production Capacity:

1000 square meter/month

Payment Term:

T/T,Western Union

Packing:

carton

MOQ:

20square Meter

Delivery Date:

11-17days

Means of Transport:

Ocean, Air



 This modular conveyor belt can be used in

The automotive industry conveyor belt, accumulator, quick-frozen food special conveyor belt, leisure food special aquaculture industry special conveyor

belt,the tire industry for logistics industry special conveyor belt, the chemical industry for frozen food special conveyor belt,climbing conveyor belt

marble, corrugated packaging industry special conveyor belt, entertainment facilities for liquid food special conveyor belt, e vegetable special

conveyor belt,meat special mine conveyor belt , special cement,Garment factory of special conveyor belt, glass factory in injection molding industry

 special conveyor belt and many automatic production line.

Ningbo Rellwin industry Co., Limited is specialized in manufacture

900 Flush Grid plastic modular conveyor belt,900 Raised Rib plastic modular conveyor belt,900 Flat Top plastic modular conveyor belt

1100 Flush Grid plastic modular conveyor belt,1100 Flat Top plastic modular conveyor belt

OPB modular conveyor belt,OPB Flat Top plastic modular conveyor belt,OPB Flush Grid plastic modular conveyor belt,OPB Flight modular conveyor belt,

5936 Flush Grid plastic modular conveyor belt,5930 Raised Rib plastic modular conveyor belt,5935 Flat Top plastic modular conveyor belt

400 Flush Grid plastic modular conveyor belt,400 Raised Rib plastic modular conveyor belt,400 Flat Top plastic modular conveyor belt,

1000 Flush Grid plastic modular conveyor belt,1000 Raised Rib plastic modular conveyor belt,1000 Flat Top plastic modular conveyor belt

M-SNB-M2 Flat Top plastic modular conveyor belt,M-SNB-M3 Flush Grid plastic modular conveyor belt

L-SNB Flush Grid plastic modular conveyor belt,L-SNB Raised Rib plastic modular conveyor belt

4809 Raised Rib plastic modular conveyor belt

 Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete

module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can

 enhance transverse strength and it is easy for maintain.

The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry

area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch

straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).

 Transportation and daily maintenance of plastic conveyor belt

During storage, the product must be placed into a roll not folded, turning once during placement should be on a quarterly basis

2.Different type, size layers together using the belt should

3.Type conveyor belt, structure, size, number of layers should be a reasonable choice according to the conditions

4.Feed direction along the direction of the tape should be, in order to reduce the impact on the whereabouts of the tape should be taken when the material chute, reducing materials falling distance

Conveyor belt in use should note the following

1.Avoid roller is covered with material, resulting in ineffective rotation to prevent leakage of material between the roller and the tape card, pay attention to the lubrication of moving parts,

2.Avoid starting with a over load

Feature of Plastic modular conveyor belt

Plastic modular conveyor belt using belt injection splicing, and with supporting the drive sprocket, with no deviation drive replacement easier cleaning

characteristics.

Plastic mesh belt drive module is stuck in the belt sprocket sprocket grooves are opposite the corresponding drive, so no deviation.Plastic modular

 conveyor belt is

easier to replace because it is wearing a matching pin assembled, it can be based on partial replacement of damaged parts, it is unnecessary to replace the whole

one , to save a certain amount of expenses.Plastic modular belt is relatively flat and smooth surface, can be directly rinsed with water and wash with some tools.

Plastic materials have arbitrarily chosen to achieve and satisfy the conditions customers, there are food-grade plastic

 belt and high temperature plastic mesh and plastic mesh belt wear and rally.Is a new type of environmentally friendly technology conveyor ideal supplies.

Plastic mesh is also called plastic modular belt belt is the introduction of foreign advanced technology, using molds for injection molding and then stitched together

 according to customer demand.

 The story of this product

 A t the beginning ,our company has not this product.
This was ordered by a regular customer.We had so many cooperation.He is very trust us .He was willing to sant me his sample.He is very kindly to send

 me sample by courier immediately . And i had been send the sample of new mold when our engineer finish it . Finally ,we begin to production after this

customer confirm the quality .
And we still be cooperated now.











Our services

1. Warranty time: 1 year.  The conveyor belt / chains / sprockets which supplied by our company could be exchanged when it have quality problems,such as it was broken in installing , the pin run out from chains or the chains parted . But if the user use it in a wrong way, we can not provide any goods for free .

2. Payment: T/T , L/C , Western Union or Paypal .

3. Lead time: 5~15 working days, subject to the order quantity.

4. Shipment: by sea, by air,door to door service for samples transportation.

5. OEM service : we have our own R.D team . If you want to purchase the belt which we have not or you have your own design , we would like to make mold for you for free , only have the condition of requiring continuous orders ,and first order must be more than 60 square meters .
