900 perforated flat top plastic modular conveyor belt

Price: 60.0~80.0 USD
Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RW-YY-PFT900
Production Capacity: 1000 suquer meter a mouth
Delivery Date: 12-16day
Material: Plastic
Brand Name: OEM
thickness: 8.6mm
Material:: POM / PP/PE
curved radius: 50mm / 1.97inch
Sample: for free
Assembling Method:: Connected with rods
Means of Transport: Ocean,Air
Packing: by carton
Structure: Belt Conveyor
Material Feature: Heat Resistant
pitch: 27.2mm
open area: 12%
weight: 7.11KG
dry(POM): +4 ~ +80
Backflex radius:: 50mm

900 protrude modular plastic
1. Pitch : 27.2mm
2. Open Area :12%
3. Material :POM / PP / PE

Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods. Except for narrow belts (one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion. This structure can enhance transverse strength and it is easy for maintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design makes the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive,lines of battery and so on.
Rellwin company has a widely range of different material and structure belts. The range of Rellwin's modular belts varies from 3/8 inch small pitch straight running belts to 2inch pitch sideflexing belts,The most commonly used belt styles inclued:
Flat Top:suitable for a wide range of products,when a fully closed belt surface is preferred.
Flush Grid:commonly used in applications where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors, where the elevation of product changes.Friction Top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications.
Perforated Flat Top:used when air flow and water flow are critical but the percentage of belt open area must remain low.
Other,less frequently used belt styles may better fit your special requirements:Open Grid,Nub Top(anti-stick),Cone Top(extra grip).


vertical reciprocating conveyor belt

conveyor belt manufacturers in China

Perforated Flat Top round hole 900 Plastic Modular Belts

Sprockets for 900 series

YY-1500D Aperture Flat modular plastic belt

Item No.MaterialTemperatre rangeWeightBackflex Radius(min.)Working load(max.)
RW-PFT900POM+4 ~ +80+4 ~ +657.150.0216001480
PP+4 ~ +104+4 ~ +1044.5410200700

Place of OriginColorSampleCertificateApplicationSuperiority
Ningbo ChinaBlue/whiteFreeISO9001:2000Beverages/food processing/packingProduction And Sales Integration


1.ISO9001 certification
2.Factory quantity
3.Design as your required
4.Have our technical team
5.have 8 years trade experience

Feature of Plastic modular conveyor belt

Plastic modular conveyor blet using belt injection splicing, and with supporting the drive sprocket, with no deviation drive replacement easier cleaning characteristics.

Plastic mesh belt drive module is stuck in the belt sprocket sprocket grooves are opposite the corresponding drive, so no deviation.Plastic modular conveyor belt is

 easier to replace because it is wearing a matching pin assembled, it can be based on partial replacement of damaged parts, it is unnecessary to replace the

whole one , to save a certain amount of expenses.Plastic modular belt is relatively flat and smooth surface, can be directly rinsed with water and wash with some

tools.Plastic materials have arbitrarily chosen to achieve and satisfy the conditions customers, there are food-grade plastic belt and high temperature

 plastic mesh and plastic mesh belt wear and rally.Is a new type of environmentally friendly technology conveyor ideal supplies. Plastic mesh is also called plastic

modular belt belt is the introduction of foreign advanced technology, using molds for injection molding and then stitched together according to customer demand.

A modular conveyor belt, which is capable of flexible running and assembly of a plurality of rows of plastic belt modules in the form of modules.Rows of conveyor

 belt modules connected by a connecting pin extending along a hinge line with the pin passing through the end of the chain conveyor belt module as an opening,

 the opening extending in the longitudinal direction of travel, the adjacent rows of modules the chain ends are staggered,Among them:Longitudinal direction from the end of conveyor module conveyor extending in the conveying end of the conveyor chain has a slot opening for receiving a

connecting pin conveyor, in each module, the chain conveyor comprises a front end and a rear end of the chain terminal group group wherein one low chain end

groups are in a higher position, and the other in the lower position, the delivery module is assembled and staggered, so that one end of the module row of high

amylose and high chain-end connected rows of adjacent modules, and a module row conveyor connected

to the low end of the chain of another module adjacent rows located at the inside of a turn in the road in turn transport conveyor modules together shrinkage,

high chain-end along a first direction extending in the forward or backward adjacent the upper end of the lower

 strand of the next module row also extending in the first direction along a conveying module adjacent to the top by overlapping therewith, the delivery conveyor at

the high end of the chain adjacent to the next module in the row of connecting pins, so that with the turning of the inner edge close to shrink.

One of the greatest concerns in meat industry is the cleaning of the production lines. Blood, viscera, and other organic substances make difficult the cleaning

 and, therefore, obtaining optimum sanitary conditions.That is why in food industry, and particularly in meat industry, all conveying systems have to be entirely

accessible in order to carry out their cleaning. The plastic modular belts can be moved, taken off, lifted, even easily dismantled, in order to allow the

access to the most difficult areas to be cleaned.Some belts have been specially designed for carrying out a continuous cleaning without stopping the

 production line.

Our services

1. Warranty time: 1 year.  The conveyor belt / chains / sprockets which supplied by our company could be exchanged when it have quality problems,such as it was broken in installing , the pin run out from chains or the chains parted . But if the user use it in a wrong way, we can not provide any goods for free .

2. Payment: T/T , L/C , Western Union or Paypal .

3. Lead time: 5~15 working days, subject to the order quantity.

4. Shipment: by sea, by air,door to door service for samples transportation.

5. OEM service : we have our own R.D team . If you want to purchase the belt which we have not or you have your own design , we would like to make mold for you for free , only have the condition of requiring continuous orders ,and first order must be more than 60 square meters .

Company and Productsinformationrelated:
Ningbo Rellwin IndustryCo.,ltd

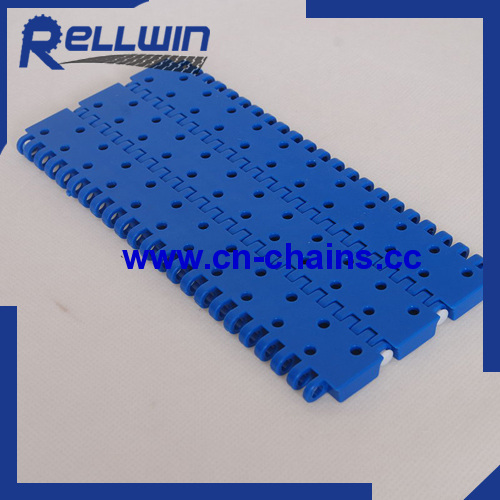

1500D Aperture Flat modular plastic belt industrial belt conveyor
